JXModel 1/14 E20 Mini RC Hydraulic Excavator Upgraded Remote Control Digger Simulation Construction Vehicle Models Sounds Light
Key Specs
About this product
This product is a desktop-level excavator model, with a net weight of only about 1.1KG. It is not suitable for digging soil.
?
Specification:
Manufacturer: JXModel
Item Condition: New, Assembled and Painted
Scale: 1/14
Material: Metal, Plastic
Vehicle Size: About 204*192*73mm
Net Weight: About 1.1KG
ID: JXM-E20-Excavator-RTR-WBK
?
The Package Includes:
1/14 RC Excavator Model
Motor
Servo
ESC
Hydraulic System with a 4-way Reversing Valve
Lights
Sound System
FlySky I6S Remote Controller and Receiver
Battery
?
The Package Does Not Include:
Light System
Charger
Hydraulic Oil
?

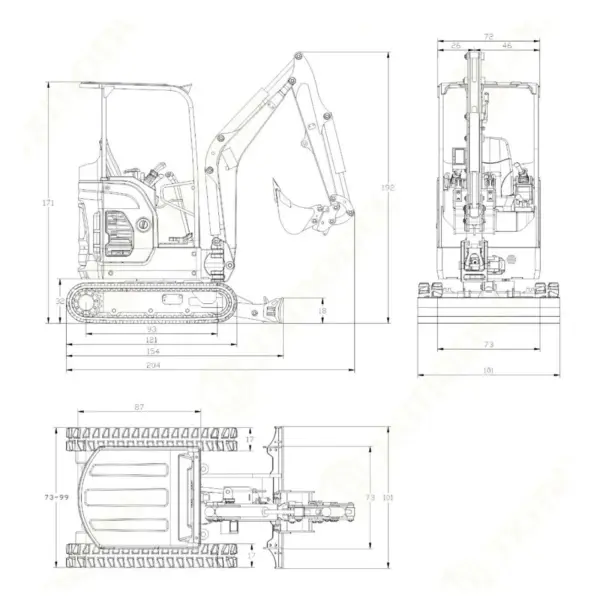

Static Technical Parameters:
– Cab top height above ground/mm: 171
– Platform bottom height above ground/mm: 32
– Total track length/mm: 121
– Wheelbase (center distance between drive wheel and guide wheel)/mm: 93
– Single track width/mm: 17
– Total width with front/rear two tracks extended/mm: 73-99
– Maximum extension length of the entire machine/mm: 429
– Total width of the entire machine with extended push shovel front/rear/mm: 73-101
– Chassis length (from track to front shovel)/mm: 154
– Shovel working face height/mm: 18
?
Dynamic Technical Parameters:
– Maximum rotation angle of the shovel/??: 23
– Maximum track lift angle when the shovel is raised/??: 5

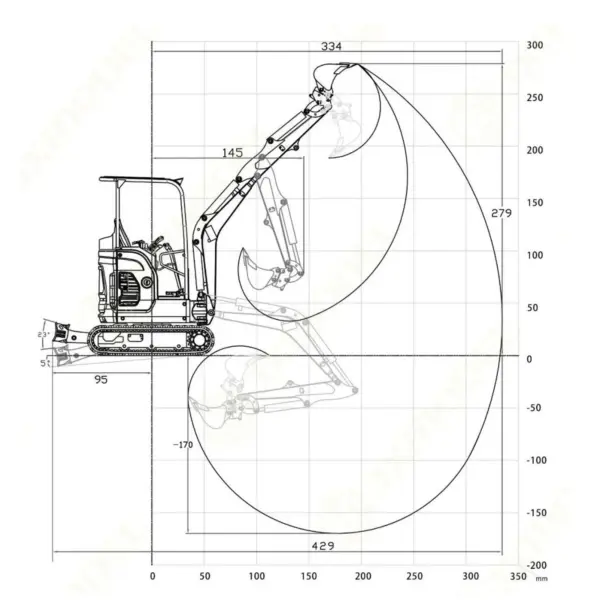

– Minimum turning radius during operation/mm: 145
– Maximum turning radius during operation/mm: 334
– Maximum digging height/mm: 279
– Maximum digging depth/mm: -170
– Maximum rotation angle/??: 360+ (infinite rotation)

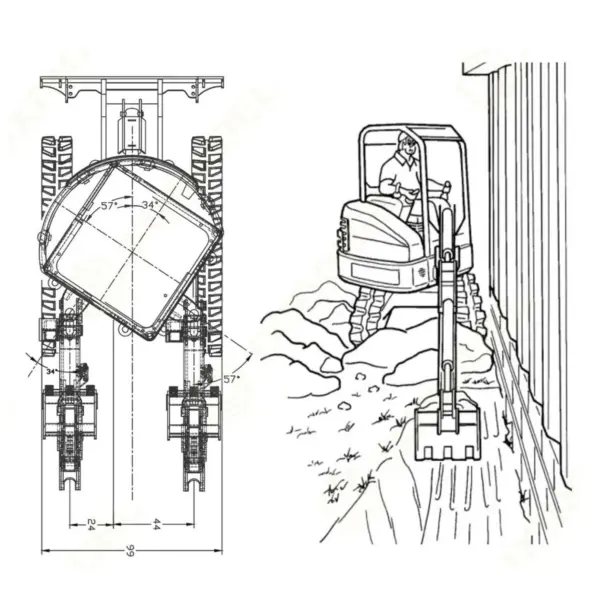

– Main arm horizontal rotation angle/??: Left 34 – Right 57
– Platform rotation speed (r/min): 36
– Platform rotation motor reduction ratio: 1:546
– Walking drive wheel track (r/min): 30
– Walking drive motor reduction ratio: 1:603
– Maximum pressure of hydraulic workstation/mpa: 2
– Rated pressure of hydraulic workstation/mpa: 1.5
?
Features:
1. Premium Alloy Construction:
?? – The entire main body is crafted from high-quality alloy using CNC machining or stainless steel sheet metal.
?? – Other components utilize engineering plastics and rubber for durability.
?
2. Compact and Powerful Design:
?? – Remarkably miniaturized, the excavator features an integrated setup with 4-channel valves comes with upgraded 8.4V servos, an oil pump, , radiator cooling fan, hydraulic tank, battery, integrated motherboard, and a sound system with speakers.
?
3. Portable and Fully Functional:
?? – With its miniature dimensions, the excavator offers a complete range of functionalities.
?? – Convenient to carry around, it provides desktop-level enjoyment wherever you go.
?
4. Expandable Features:
?? – Designed with reserved interfaces for quick attachment of additional tools and electric accessories.
?? – Ongoing releases of compatible attachments for continuous customization.
?
5. Customized Integrated Motherboard:
?? – Highly integrated custom motherboard equipped with illuminating searchlights for enhanced visual appeal.
?
6. Quick Manual Detachment:
?? – Features a manual quick-detach mechanism for efficient and user-friendly operation.
?
